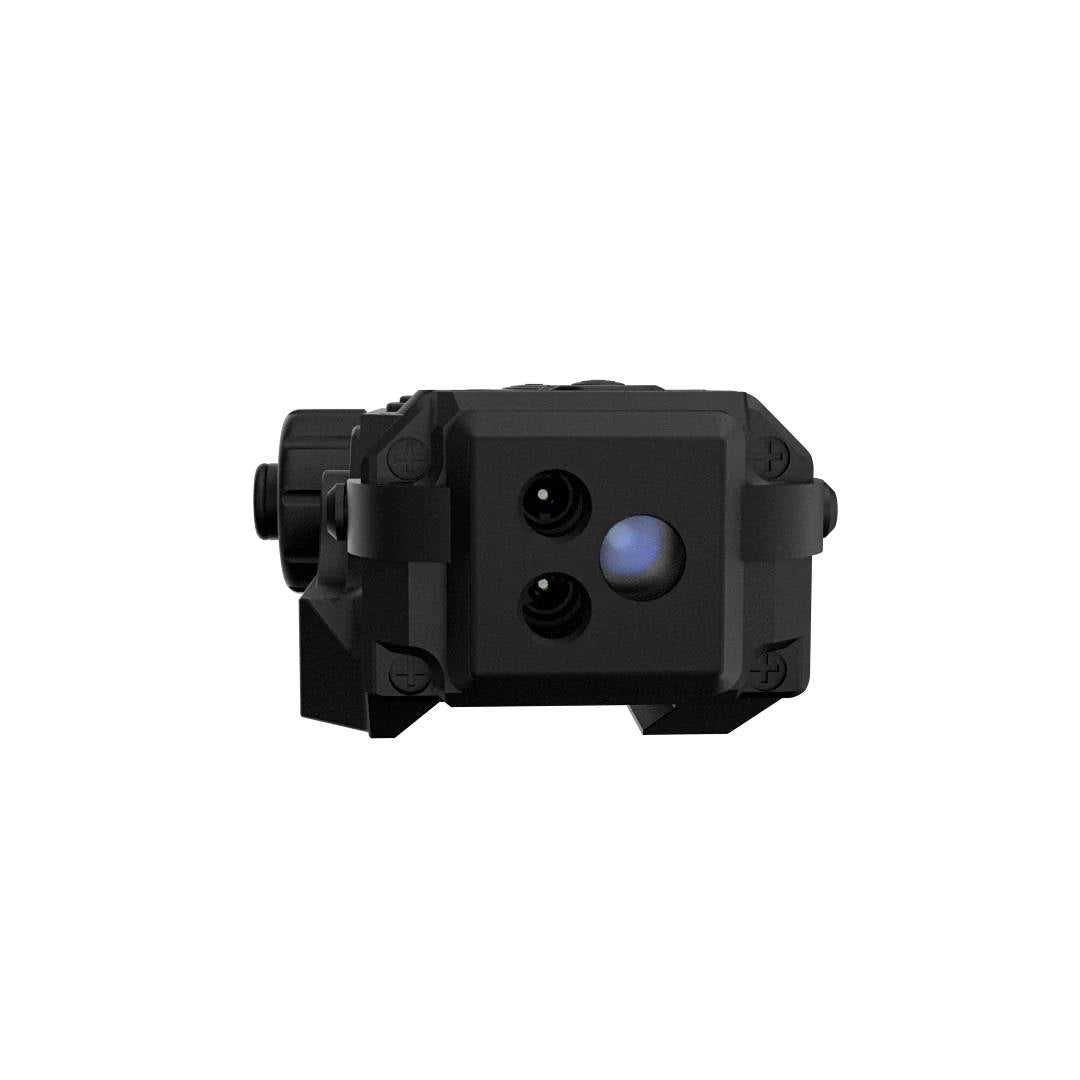

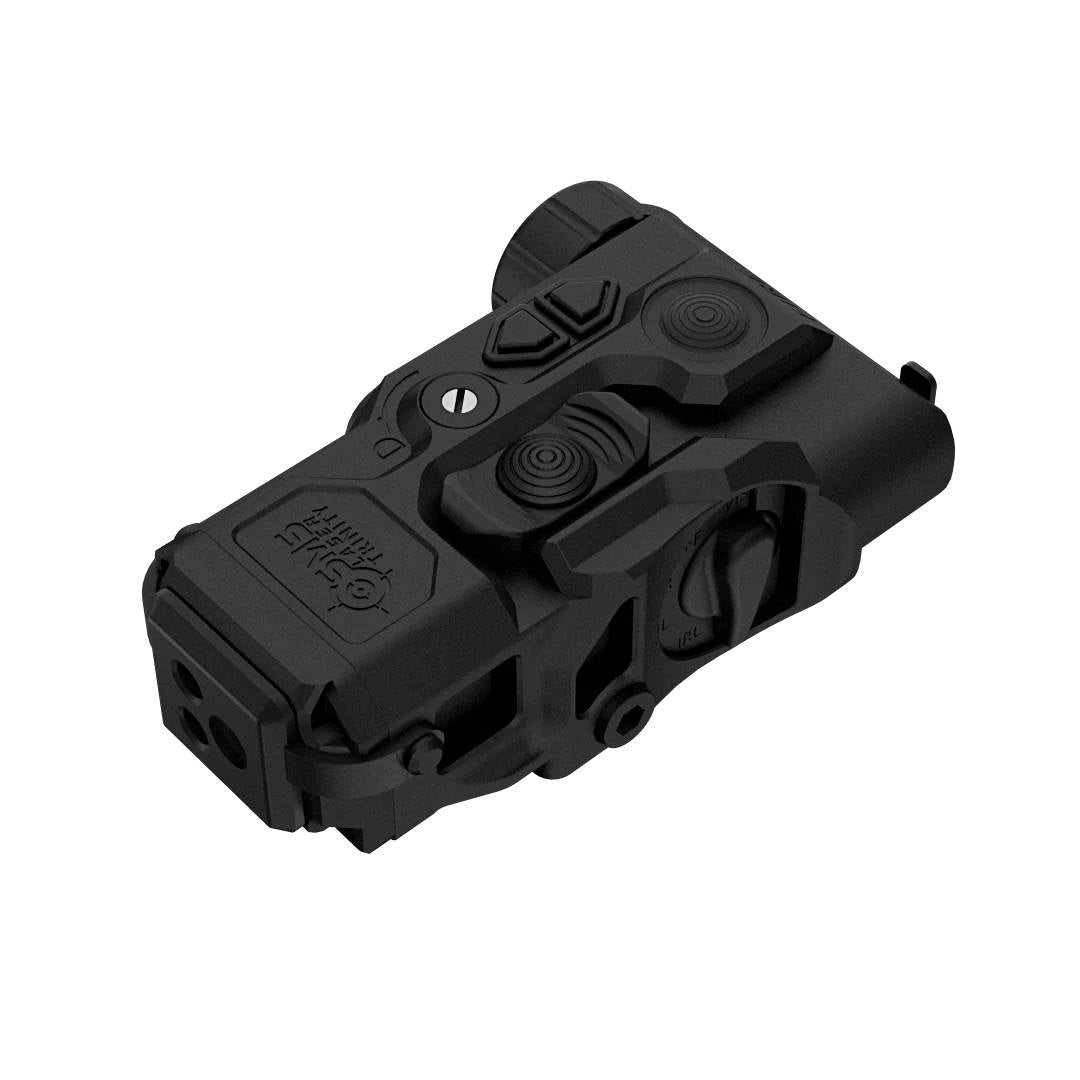

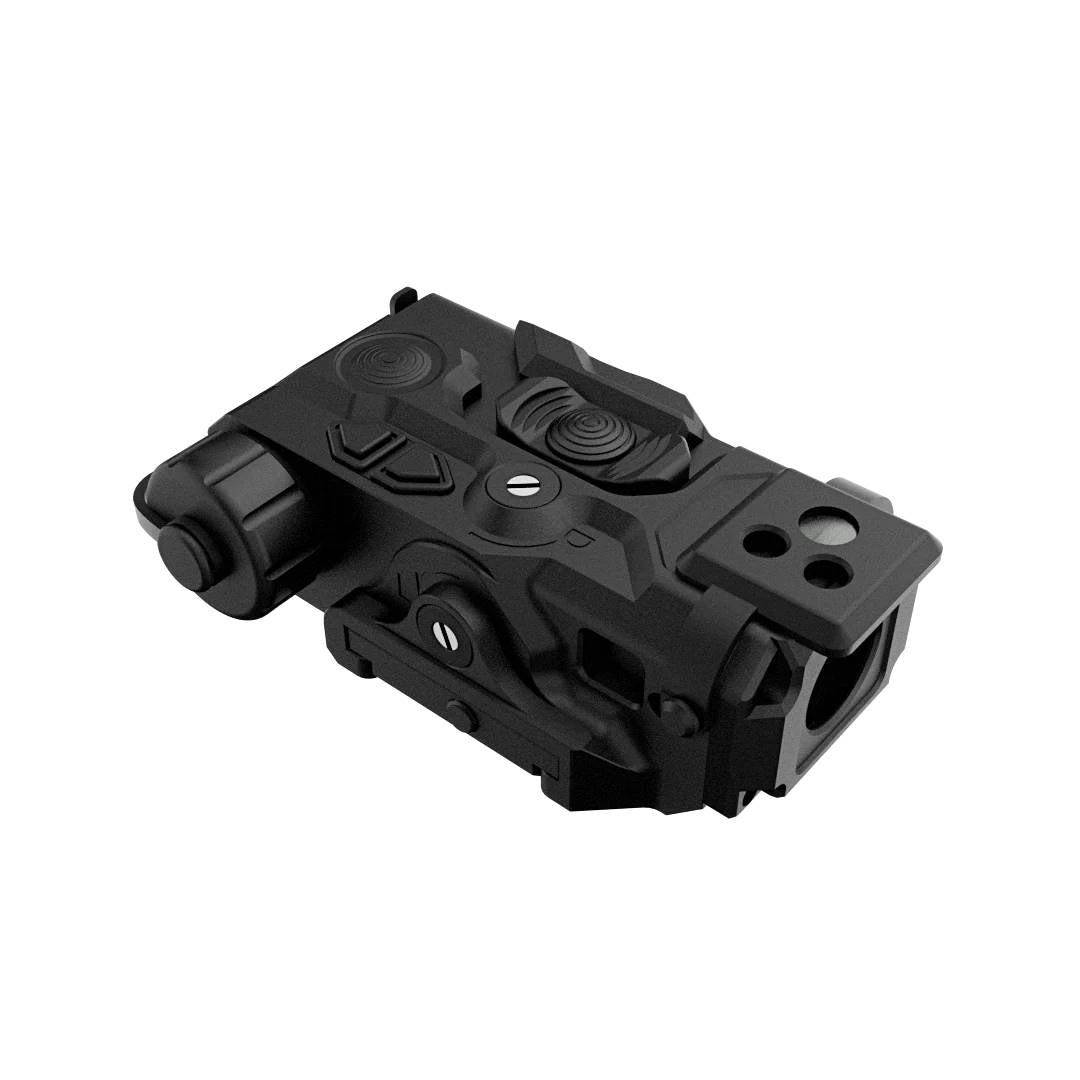

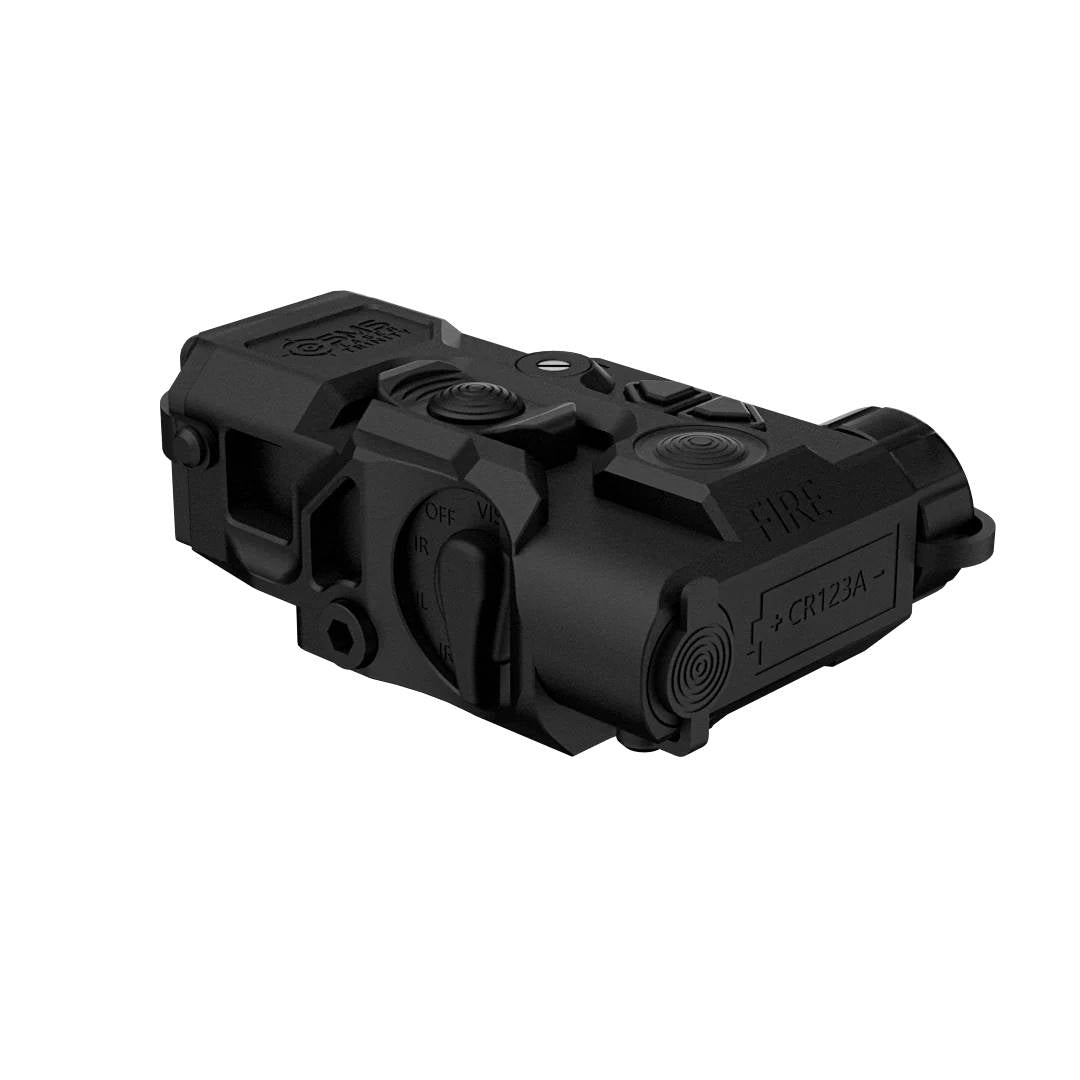

TRINITY 3-in-1 Laser Aiming Module

The TRINITY VCSEL laser aiming module sets a new standard in the budget-friendly segment of laser pointers for night vision users. Are you just getting started with night vision shooting? The TRINITY with a VCSEL illuminator is the perfect choice!

TRINITY is a high-performance, compact laser aiming module (LAM) designed to bridge the gap between inexpensive replicas and professional systems costing thousands EUR. Now available for EU customers.

Thanks to advanced VCSEL (Vertical-Cavity Surface-Emitting Laser) technology, TRINITY offers a ultra-clear infrared illuminator without a “halo” effect, which until now has been the domain of premium-class devices such as MAWL or RAID-XE.

Ideal for tactical shooting enthusiasts and those just starting their adventure with shooting using NVGs. The TRINITY laser pointer delivers performance comparable to “Full Power” devices in a rugged, IPX8 waterproof housing.

Thanks to its compact dimensions, the TRINITY is perfect for short-barreled rifles, submachine guns, and PCCs.

Key Features of TRINITY

• Next-gen VCSEL technology: Unlike traditional old EEL illuminators, the VCSEL in the TRINITY generates a uniform beam free of grainy artifacts and shadows, which drastically improves target identification.
• Fully coaligned: The green VIS laser, IR laser, and IR illuminator are factory-synchronized. Zero during the day, and the IR pointer will automatically be set to the same point (slaved).
• Slider: This revolutionary slider allows for instant adjustment of the VCSEL illuminator beam’s focus (from ~25 MRAD to ~165 MRAD) - perfect for transition from long-range illumination to a wide “flood” mode inside buildings.
• Two Programmable Modes: The TRINITY features two configurable IR settings. You can save your preferred laser/illuminator power levels for specific use cases (e.g., CQB vs. Long Range) and switch between them instantly using the side dial.
• Full Power: TRINITY has high-output modes that rival military-grade equipment.

• IPX8-rated housing and recoil resistance: TRINITY features a 7075 aluminum housing and has been tested for vibrations up to 1200G. This is no toy—the module is designed for use on 5.56 NATO/.223 REM/9mm Para caliber platforms. Thanks to its compact size, it’s also perfect for PCC!

TRINITY Tech Specs:

• VIS laser: green 520 nm
• VIS laser power: <5 mW
• IR laser: 850 nm
• IR laser power: 0.7 mW
• IR illuminator: 850 nm VCSEL
• IR Illuminator power: 100 mW
• Beam divergence: adjustable from ~25 MRAD to ~165 MRAD

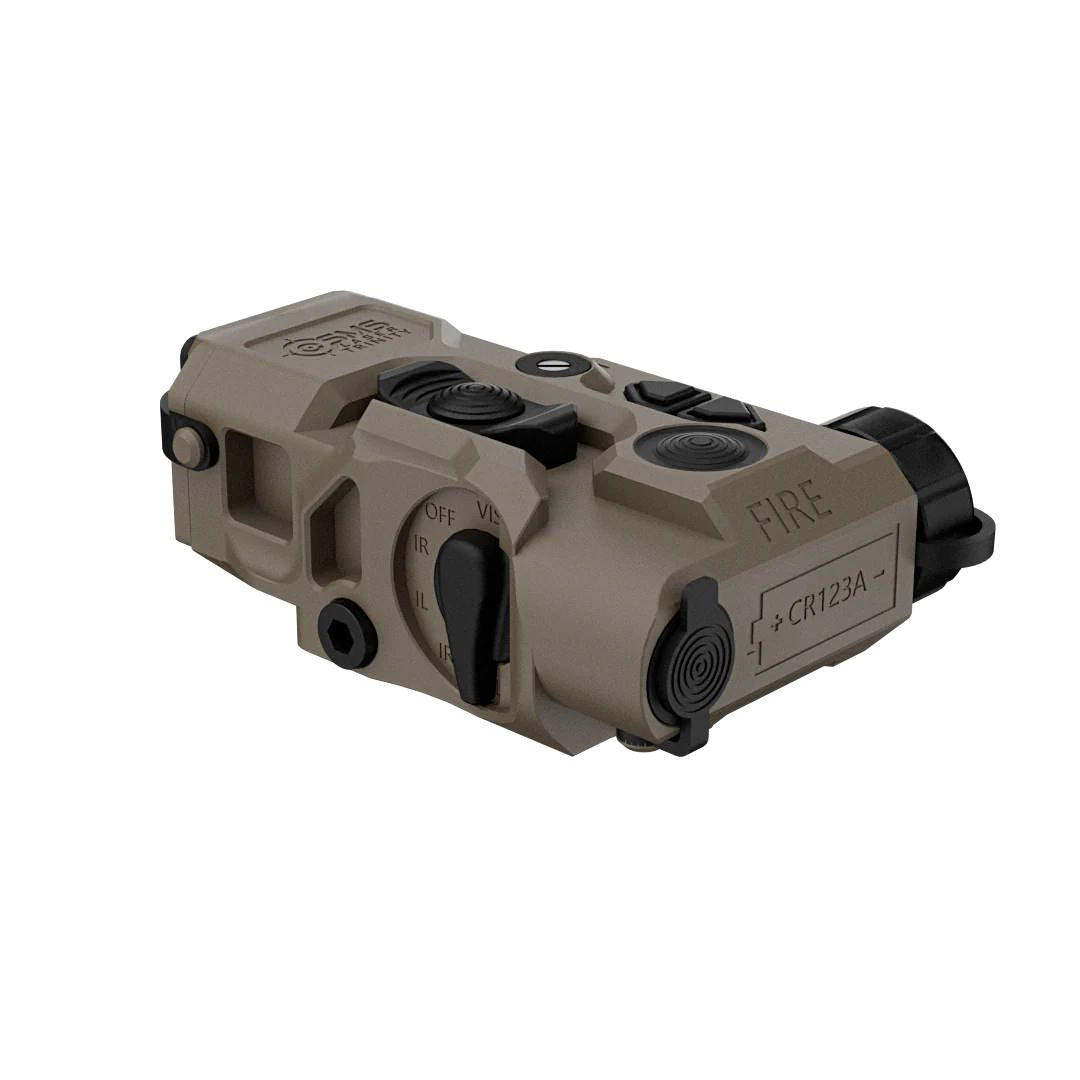

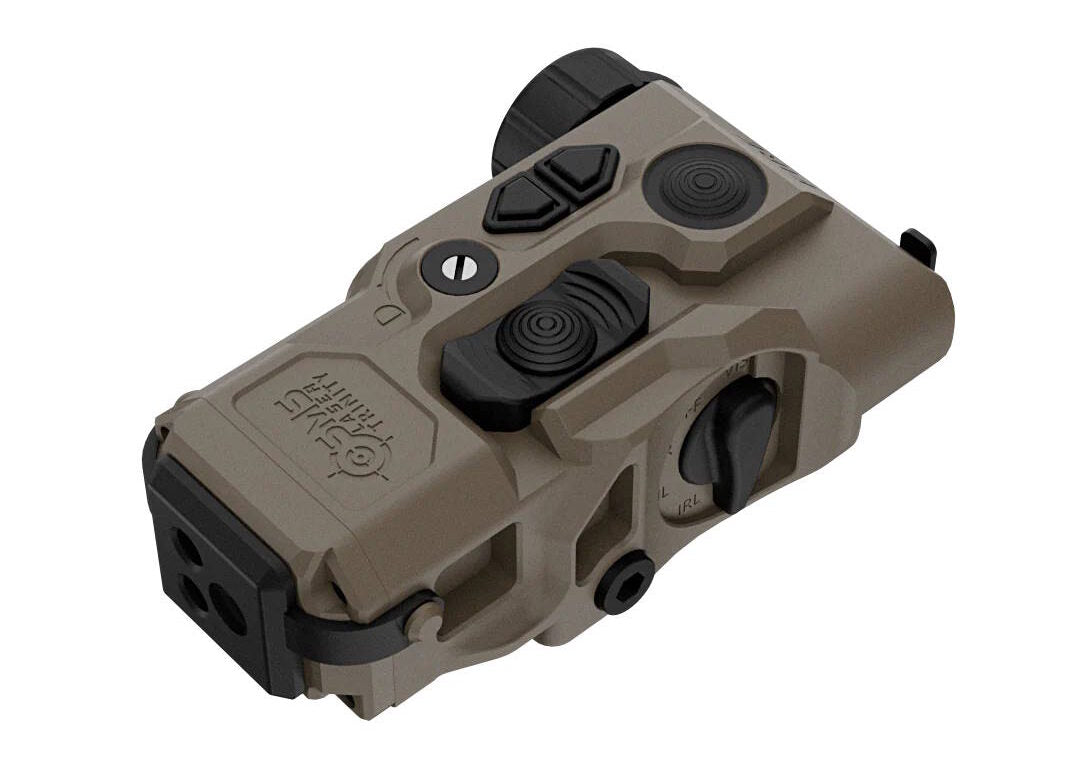

• Housing: CNC-machined 7075 aluminum (black anodized or FDE Cerakote coating)
• Mount: Picatinny rail mount with a recoil-reducing lug
• Power source: 1x CR123A or 16340 rechargeable battery
• Weight: 190 g
• Water resistance rating: IPX8 (full submersion)
• Tested calibers: 5.56 NATO/.223 Rem, 9 mm Parabellum

What's in the box?

• TRINITY LAM
• Low-profile remote switch with Crane plug (compatible with Modlite Modbutton and UNITYTactical AXON)
• Built-in diffusion cap (for 180° illumination)
• Quick start guide

Why TRINITY?

Independent testers on US forums such as Reddit (r/NightVision) and AR15.com emphasize that the illuminator used in the TRINITY “blows away” the military PEQ-15 in terms of performance and rivals top-tier designs like the OGL, MAWL, or RAID-XE.

Tips & Tricks

TRINITY sits directly in the axis of the barrel. Although it fits under most folding sights (such as the MBUS Pro), a fixed A2-style front sight base may interfere with the laser beam.

We recommend mounting it on the top rail for optimal illumination and using raised mounts that elevate the optical axis of the primary sight, such as the UNITY Tactical FAST series
